Hydraulic Testing Machines

Italsigma designs and manufactures servo-hydraulic machines for static and dynamic testing.

Italsigma’s hydraulic machines are testing systems designed to perform static and dynamic tests on materials, components, and structures. Thanks to the high force generated by the hydraulic systems, they are ideal for high-load testing and fatigue testing on industrial and structural components.

The machines can be configured according to customer requirements and integrated with control systems, data acquisition systems, and specialized equipment.

CONTACT US

  • Automotive Load Frame

    500 kN Load Capacity, 200 mm Stroke

  • Connecting Rod Testing System

    The system consists of a load frame and two mechanical grips designed to reproduce the operating conditions of the connecting rod, including the specified component interfaces and lubrication conditions. A forced lubrication system is provided at the connecting rod big end, while lubrication at the small end is supplied by gravity.

    • The system is equipped with a forced lubrication unit.
    • A compact gear pump draws oil from the collection tank and delivers it to the upper pin.
    • Three channels positioned at 120° intervals along the centreline of the pin ensure effective lubrication of the connecting rod upper bushing.
      • …

  • FPF100 Servo-Hydraulic Testing Machine

    Two-column testing machine equipped with a servo-hydraulic actuator mounted beneath the lower crosshead and a slotted support base.

    The load cell can be mounted either on the actuator or on the upper crosshead.

  • FPF50 Servo-Hydraulic Testing Machine

    Two-column testing machine equipped with a hydrostatically supported servo-hydraulic actuator mounted above the upper crosshead and a slotted support base.

    The load cell can be mounted either on the actuator or on the lower crosshead.

  • 13 MN (1,300 ton) FULL-SCALE TESTING MACHINE

    This testing machine performs tensile, compression and bending tests on steel pipes for gas and oil pipelines. It can perform cyclic tests at frequencies of up to 5 Hz and tests on internally or externally pressurized pipes. TECHNICAL SPECIFICATIONS
    • Maximum compression force: 10 MN
    • Maximum tensile force: 13 MN
    • Maximum bending moment: 30 ton·m
    • Maximum pipe diameter: 14" (356 mm)
    • Maximum pipe length: 2,000 mm

  • FULL-SCALE BENDING TESTING MACHINE

    Reduced sliding friction: the specimen cylinders and drive system are supported by low-friction sliding guides. The distance between the cylinders can be adjusted to accommodate different tensile load configurations. TECHNICAL SPECIFICATIONS Four-point bending tests on steel pipes for gas and oil pipelines.
    • Maximum force: 8 MN
    • Maximum support span: 26 m
    • Maximum pipe length: 30 m
    • Maximum pipe diameter: 56" (1,420 mm)
    • Maximum pipe deflection: 5,000 mm

  • FULL-SCALE DAMAGE SIMULATION TESTING MACHINE

    This testing machine simulates damage caused by the bucket of an excavator or other construction machinery on steel pipes used for gas and oil pipelines.

    The damage is simulated through the impact of a steel striker at controlled speed and along a controlled trajectory. TECHNICAL SPECIFICATIONS
    • Pipe diameter: 24" – 36" – 48" – 52"
    • Maximum pipe length: 6,600 mm
    • Maximum impact velocity: 5 m/s
    • Striker-to-pipe impact angle: 0° to 90°

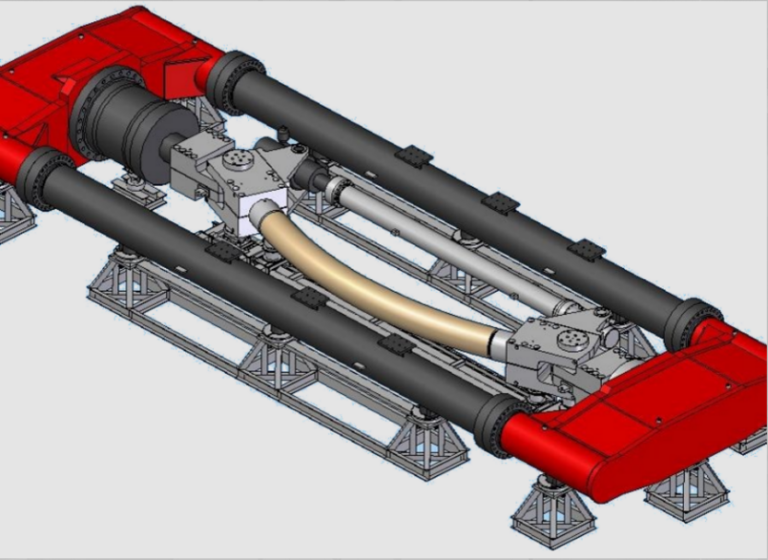

  • 30 MN FULL-SCALE TESTING MACHINE

    This testing machine performs tensile, compression and bending tests on steel pipes for gas and oil pipelines.

    The system is optimized for specimen positioning and securing, and can perform cyclic tests as well as tests on pressurized pipes. TECHNICAL SPECIFICATIONS
    • Maximum compression force: 30 MN
    • Maximum tensile force: 25 MN
    • Maximum bending moment: 300 ton·m
    • Maximum specimen diameter: 20" (508 mm)
    • Maximum specimen length: 5,000 mm
    • Overall dimensions: 16 × 6 m – height 2 m
    • Maximum axial stroke: 500 mm
    • Maximum bending angle: ±20°

  • 3 MN (300 ton) Testing Machine

    Four-column high-stiffness load frame designed for compression testing.

    The upper crosshead is moved by servo-hydraulic lifting cylinders and hydraulically locked to the columns. The base features T-slots for secure specimen clamping. TECHNICAL SPECIFICATIONS
    • Clear working span: 5 m
    • Maximum height: 7 m
    • Maximum specimen height: 4.5 m
    • Column spacing: 900 mm
    • Base dimensions: 4 × 1 m
    • Operating hydraulic pressure: 210–280 bar
    • Maximum compression force: 3 MN
    • Frame stiffness at 1.3 m above the base: 4.5 × 10⁹ N/m

  • FPF 100 kN – RAILWAY PAD TESTING MACHINE

    FPF 100 kN – Four-Column Uniaxial Testing Machine for Railway Pad Testing

    • Static vertical load: ±100 kN
    • Fatigue vertical load: ±75 kN
    • Stroke: 100 mm
    • Four-column load frame with slotted test table (2,800 × 1,000 × 700 mm) and hydraulically adjustable upper crosshead, locked in position by hydraulic clamping devices.
    • The servo valve controlling the oil flow to the actuator is mounted directly on the actuator.
    • The double-acting servo-hydraulic actuator is connected to the upper crosshead and fitted with a load cell on the piston rod, with a static capacity of ±100 kN and a dynamic capacity …

  • FPF 30 MN Testing Machine

    Uniaxial load frame designed to withstand maximum loads of 30 MN in both compression and tension for testing structural components.

    The frame is equipped with a fixed lower crosshead and a movable upper crosshead, allowing adjustment of the available test clearance. The upper crosshead is moved by four servo-hydraulic actuators rigidly connected to the two crossheads. These actuators also apply the test load to the specimen by controlling the displacement of the upper crosshead.

  • Wall-Constrained Load Frame

    The system consists of a semi-underground foundation connected to a frame for applying vertical loads.

    The loading base is equipped with four roller bearings. The lower edge of the wall rests on the roller bearings, allowing the application of shear forces to produce controlled wall distortion. The maximum vertical load is 500 kN. To facilitate installation, the wall is inserted from above and then transferred into its final position using the roller-bearing system.

  • Scientific Testing Equipment for Curtain Walls

    In addition to the traditional air, water and wind tests required for the certification of curtain wall systems, the mechanical testing system allows the seismic response of curtain walls to be evaluated under both static and dynamic conditions.

    The system is equipped with seismic actuators capable of applying in-plane and out-of-plane loads to the curtain wall assembly. The system is suitable for:
    • Air and water tightness testing
    • Static and dynamic uniaxial and multiaxial loading tests
    Tests can be performed on curtain wall systems with maximum dimensions of 6 × 8 m.

  • Vibrodina – ITALSIGMA 9108 Servo-Hydraulic Exciter

    The ITALSIGMA 9108 servo-hydraulic exciter is designed to apply a controlled excitation force, with defined frequency and amplitude, to the structure to which it is attached. The system can be installed either in a vertical or horizontal position, allowing the simulation of vertical or horizontal excitation, respectively. The frequency can be continuously adjusted from 2 to 20 Hz. An automatic frequency sweep can also be performed at a selectable sweep rate. The maximum excitation force is approximately 70 kN. The system can be equipped with additional masses to select different operating ranges. Power is supplied by a hydraulic power unit driven by a diesel …

  • Biaxial Testing Machine for Shear Testing of Structural Components

    High-stiffness load frame designed to simultaneously apply compression and shear loads in orthogonal directions.

    The system can be used to test two-dimensional structural panels, such as walls, as well as structural components such as seismic isolators. Long working strokes can be applied to test components with a low elastic modulus, such as elastomeric bearings. TECHNICAL SPECIFICATIONS
    • Vertical force: 4 MN
    • Horizontal force: 2 MN
    • Vertical stroke: 500 mm
    • Horizontal stroke: 1 m
    • Column spacing: 1,200 mm
    • Maximum specimen height: 1,300 mm

  • BX30030 – Biaxial Testing Machine

    The testing system is designed to evaluate the performance of seismic isolators.

    The tests involve applying a compressive load in the vertical direction while imposing cyclic horizontal displacements. The machine's general performance specifications in terms of vertical and horizontal load, displacement and speed have been defined to cover the vast majority of end-of-production tests and most qualification tests. TECHNICAL SPECIFICATIONS
    • Vertical force: 30,000 kN
    • Horizontal force: 3,000 kN

  • BX5528 – Biaxial Testing Machine

    The testing system is designed to evaluate the performance of elastomeric seismic isolators.

    The tests involve applying a compressive load in the vertical direction while imposing cyclic horizontal displacements. TECHNICAL SPECIFICATIONS
    • Vertical force: 5,500 kN
    • Horizontal force: 2,800 kN

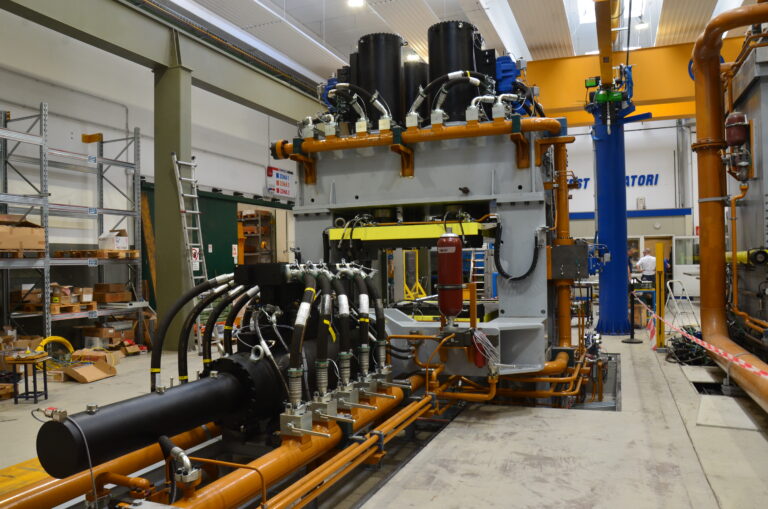

  • BX112 – Biaxial Seismic Isolator Testing Machine

    Testing machine designed for testing seismic isolators.

    TECHNICAL SPECIFICATIONS
    • Vertical load: 30 MN
    • Horizontal load: 3,000 kN
    • Horizontal stroke: 1,000 mm

  • Viaduct Beam Testing System

    Testing system consisting of four servo-hydraulic actuators with a total capacity of 6,000 kN (1,500 kN per actuator), a hydraulic power unit and a control system.

    TECHNICAL SPECIFICATIONS
    • Vertical force: 6,000 kN

  • Seismic Simulation Testing Structure

    Large-scale experimental testing system for dynamic testing of structural and non-structural components.

    The system consists of four actuators and is capable of simulating the relative response of any pair of adjacent floors in buildings of any height. TECHNICAL SPECIFICATIONS
    • Nominal operating pressure: 280 bar
    • Displacement capacity: ±1,000 mm
    • Force capacity: ±150 kN
    • Spherical joints: 150 kN

Italsigma designs and manufactures custom testing systems to support companies, research centers, and laboratories in the development and validation of their products.

Every industrial sector has specific requirements for testing, simulation, and performance verification. That is why Italsigma develops customized testing machines,
designed to accurately reproduce real-world operating conditions and provide reliable data for research, development, and quality control.

Thanks to our engineering expertise and collaboration with universities, research centers, and innovative industries, we are able to design dedicated solutions for numerous application areas,
tackling even the most complex technological challenges.
